Powerwall 3: Complete Home Energy Storage with Built-in Solar Inverter


The Tesla Powerwall 3 is a residential energy storage system that combines a 13.5 kWh battery with an integrated solar inverter in a compact unit. Designed for whole-home backup capability, this all-in-one system delivers up to 11.5 kW of continuous power, enough to support most household needs including heavy-load appliances.

Whether paired with solar panels or operating as a standalone backup solution, the Powerwall 3 offers seamless power transition during outages, intelligent storm protection, and flexible energy management options. Its built-in solar inverter streamlines installation, reduces system complexity, and maximizes overall efficiency with 97.5% solar-to-grid conversion."

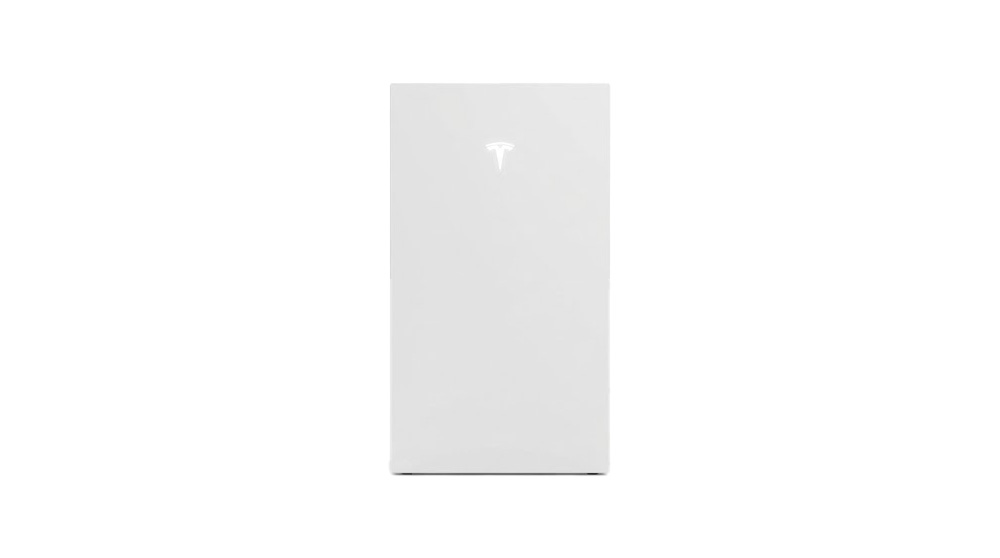

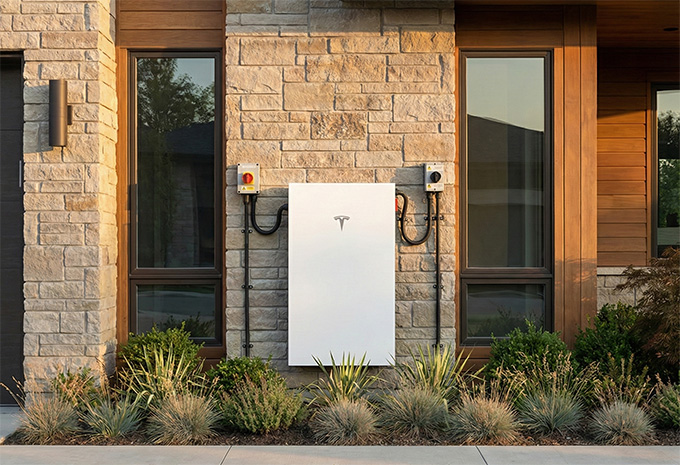

Tesla Power Wall 3

Tesla Powerwall 3: Key Features & Technical Specifications

Integrated Solar Inverter

The Powerwall 3's built-in solar inverter simplifies system design with six independent Maximum Power Point Trackers (MPPTs), supporting up to 20 kW of solar input. This integrated approach delivers 97.5% solar-to-grid efficiency while reducing complexity and hardware requirements.

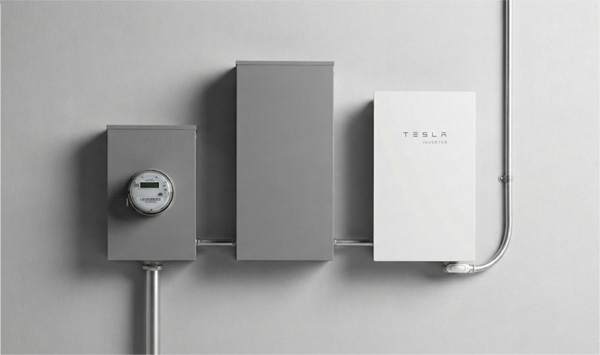

Whole-Home Backup Capabilities

With 11.5 kW of continuous power output and 185 LRA motor start capability, the Powerwall 3 can support your entire home during outages. The system transitions to backup power instantly, ensuring uninterrupted operation of essential appliances and home systems.

Storm Watch Protection

The intelligent Storm Watch feature automatically prepares for severe weather by maximizing battery charge when storms are forecast. The system's NEMA 3R enclosure and IP67 rating provide robust protection against harsh environmental conditions, maintaining operation from -4°F to 122°F.

Multiple Operating Modes

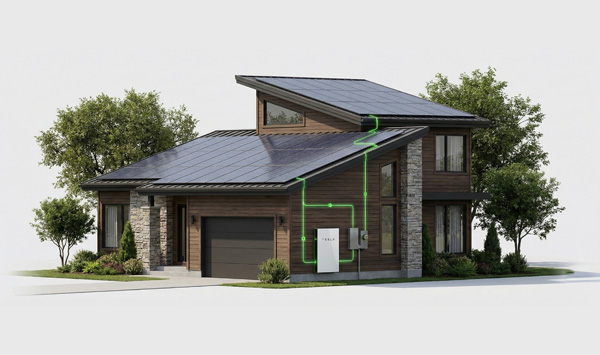

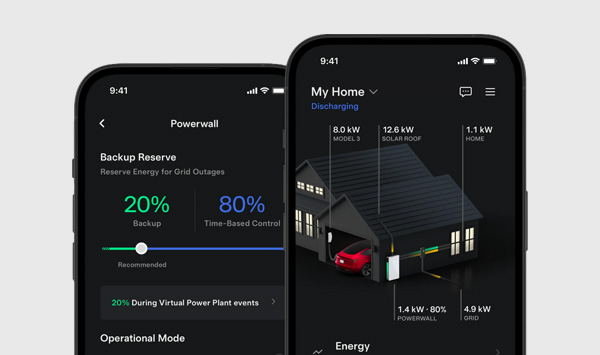

Customize your energy usage with flexible operating modes including Time-Based Control for variable rate plans, Self-Powered for maximum solar utilization, and Backup-Only for dedicated outage protection. The Tesla app provides intuitive control over all system functions.

Power Output & Capacity

  • Continuous Power: 11.5 kW AC
  • Energy Capacity: 13.5 kWh AC
  • Solar Input: Up to 20 kW DC
  • Peak Efficiency: 97.5% solar-to-grid

Installation Requirements

  • Indoor/Outdoor Rated
  • Operating Temperature: -4°F to 122°F
  • Minimum Side Clearance: 4 inches
  • Internet Connectivity: Wi-Fi, Ethernet, or Cellular

Dimensions & Installation

  • Height: 43.5 inches (1105 mm)
  • Width: 24 inches (609 mm)
  • Depth: 7.6 inches (193 mm)
  • Weight: 287 lbs (130 kg)

System Compatibility

  • Grid Type: Split Phase 120/240V
  • Frequency: 60 Hz
  • Gateway Options: Gateway 3, Backup Switch, or Backup Gateway 2

Powerwall 3 Compatible System Components


The Powerwall 3 ecosystem includes several key components that work together to deliver reliable home energy storage and backup power. From the comprehensive Backup Gateway 3 to the streamlined Backup Switch, each component serves a specific role in creating a complete home energy solution. Understanding these components helps in planning your ideal system configuration, whether you're installing a single Powerwall or designing a multi-unit installation.

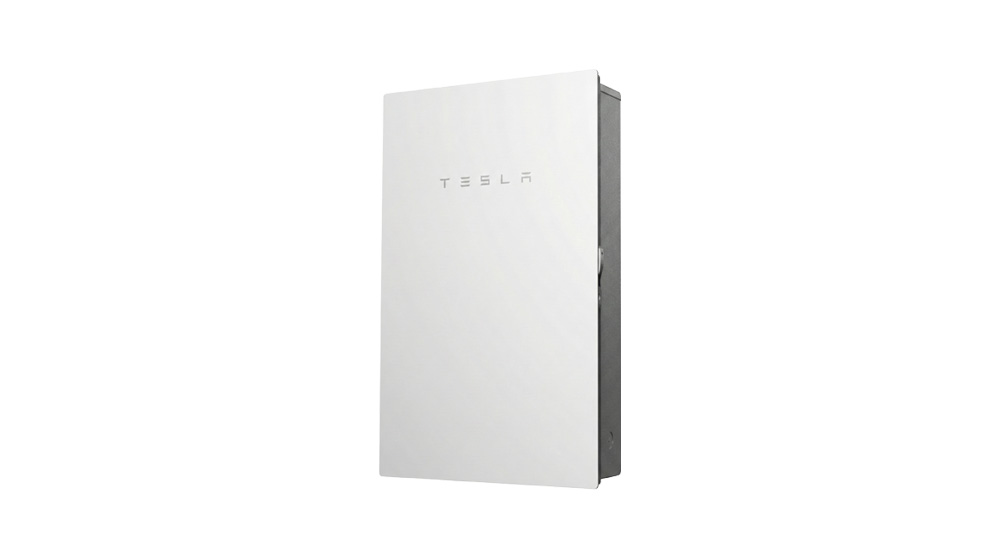

Gateway 3 (Coming 2025)

The next generation of Tesla's gateway technology:

  • 200A continuous current rating
  • Enhanced grid control capabilities
  • Built-in 8-space/16 circuit breaker panel
  • Revenue-grade AC metering (±0.5% accuracy)
  • Automatic backup transition
  • NEMA 3R enclosure for versatile installation
  • Support for multiple Powerwall configurations
  • Integrated Wi-Fi, Ethernet, and cellular connectivity

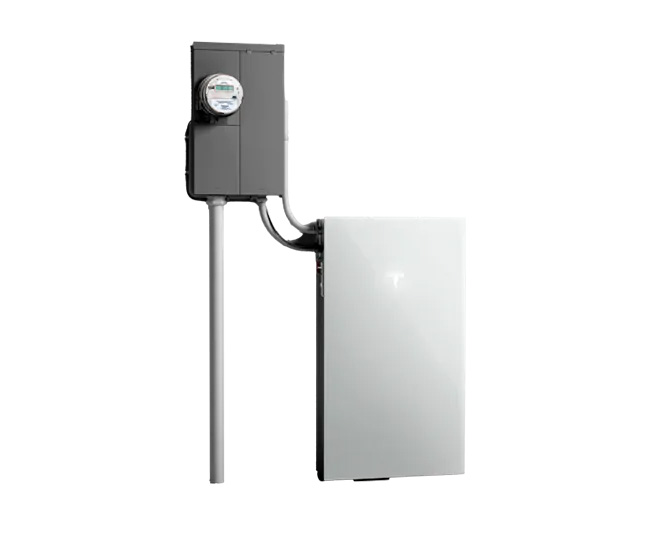

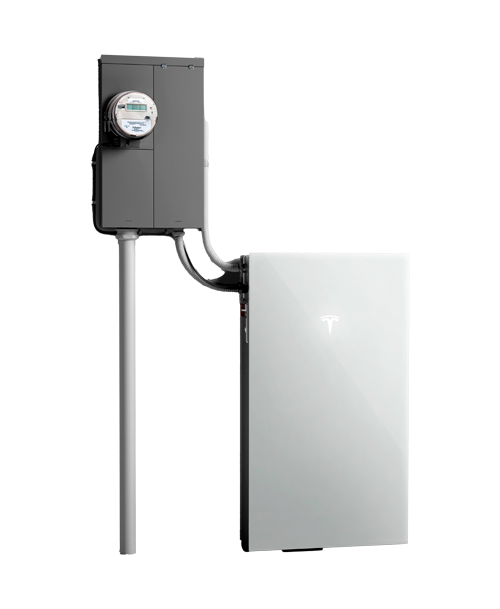

Backup Switch

A streamlined solution for grid connectivity control:

  • 200A continuous load rating for split-phase 120/240V systems
  • Compact design: 6.9" x 8.1" x 2.9"
  • Simple installation behind utility meter
  • Manual override capability for service events
  • NEMA 3R rated for environmental protection
  • Built-in revenue-grade metering (±0.5% accuracy)
  • Operating temperature range: -40°F to 50°F
  • 10-year warranty coverage

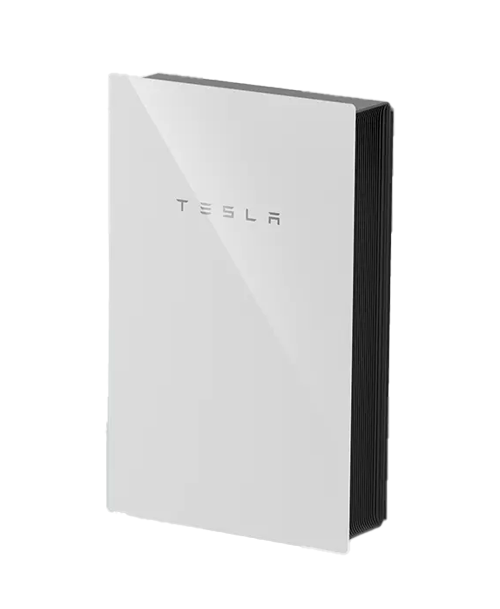

Backup Gateway 2

The established solution for grid connection control:

  • 200A continuous current rating
  • Automatic outage detection and seamless backup transition
  • Support for up to 10 AC-coupled Powerwalls
  • NEMA 3R rated enclosure for indoor/outdoor installation
  • Revenue-grade energy metering (±0.2% accuracy)
  • Integrated Wi-Fi, Ethernet, and cellular connectivity
  • Optional 200A internal panelboard with 6-space/12 circuit capacity
  • 10-year warranty coverage

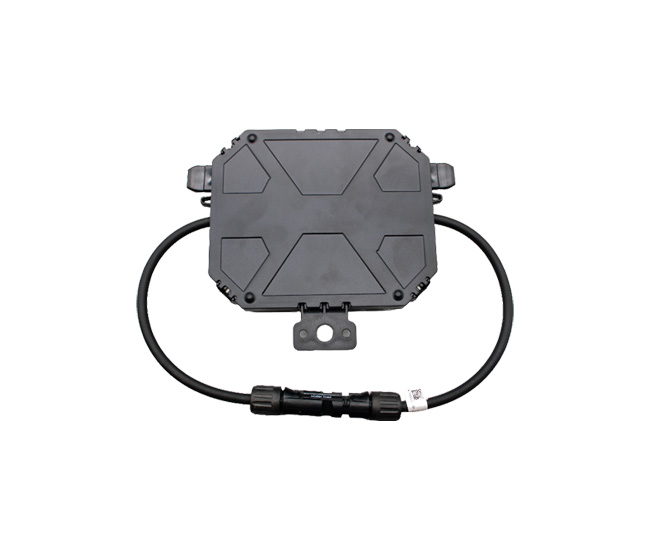

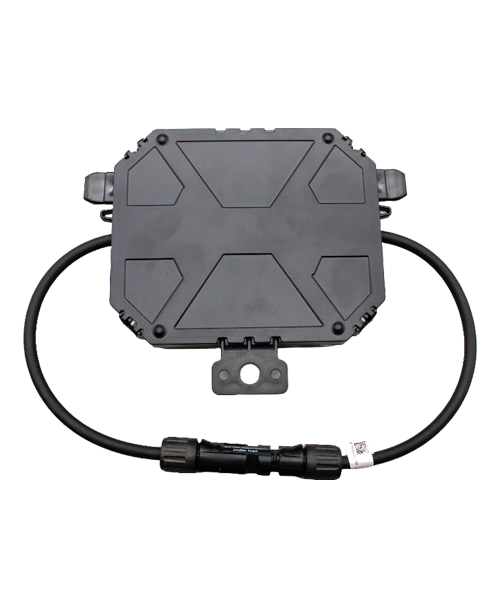

Rapid Solar Shutdown Device (Mid-Circuit Interrupter)

Essential safety component for rapid shutdown compliance:

  • Available in two models: MCI-1 and MCI-2
  • Maximum system voltage: 600V DC
  • Support for up to 5 devices per string
  • NEMA 4X/IP65 environmental rating
  • 25-year warranty protection
  • Compliant with NEC Article 690 requirements
  • Operating temperature range: -40°F to 70°F"
