IronRidge QuickMount HUG® (Halo Ultra Grip)
The Ultimate Solar Roof Mount for Protecting Your Shingles
In the world of rooftop solar installations, protecting the integrity of the roof is paramount. QuickMount® HUG® is a game-changing solar mount designed specifically for asphalt shingle roofs, offering unparalleled waterproofing and ease of installation. With its innovative Halo UltraGrip™ technology and multi-tiered waterproofing system, HUG® respects your roof while providing a secure and reliable foundation for your solar panels.
IronRidge HUG® Features

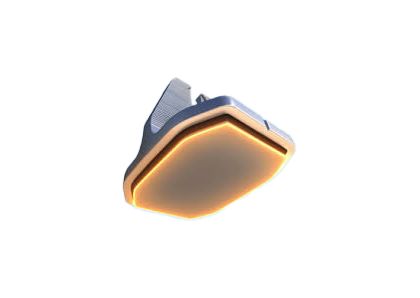

Halo UltraGrip™ Technology
The UltraGrip™ seal technology employs a unique combination of foam and mastic to create a flashing system that conforms and adheres to every contour of your composition shingles. This innovative seal fills gaps and shingle step-downs up to 1/8" in height, providing a seamless and watertight barrier.
Multi-Tiered Waterproofing
The HUG® mount features a multi-tiered waterproofing system that ensures superior protection against water intrusion. At its core is the Halo cast-aluminum, raised-perimeter foundation, which surrounds the innovative UltraGrip™ base. This base consists of a foam-backed mastic seal combination.
Rafter & Deck Mounting Options

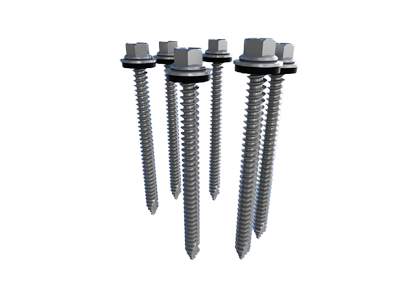

The HUG® mount offers the flexibility to be installed on either the roof rafters, the roof deck, or both. The custom-engineered RD (rafter-or-deck) Structural Screw is designed to securely anchor the HUG® mount to your roof. Additionally, the RD Structural Screw features an EPDM sealing washer.
Learn More about the QuickMount® HUG®
Flexible Rafter-Adaptive Mounting
Found the Rafter?
You're All Set!
With just 2 RD Structural Screws, secure the HUG® to the rafter and proceed to the next mount.

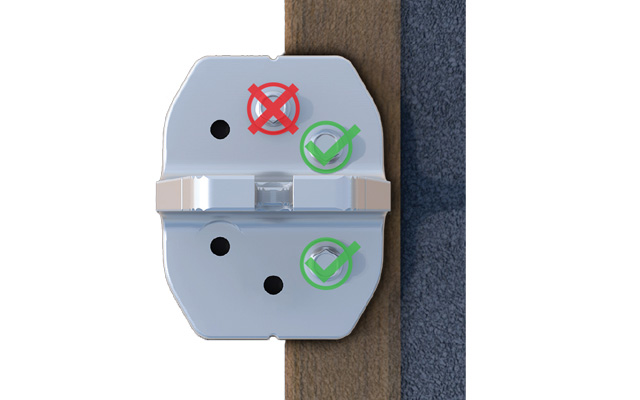

Rafter Not Where You Expected? Keep Trying!
If the first screw misses the rafter, try placing another one slightly to the left or right. Once you hit the rafter, install the final screw.
Rafter Proving Elusive? Time to Deck Mount!
If the first screw misses the rafter, try placing another one slightly to the left or right. Once you hit the rafter, install the final screw.

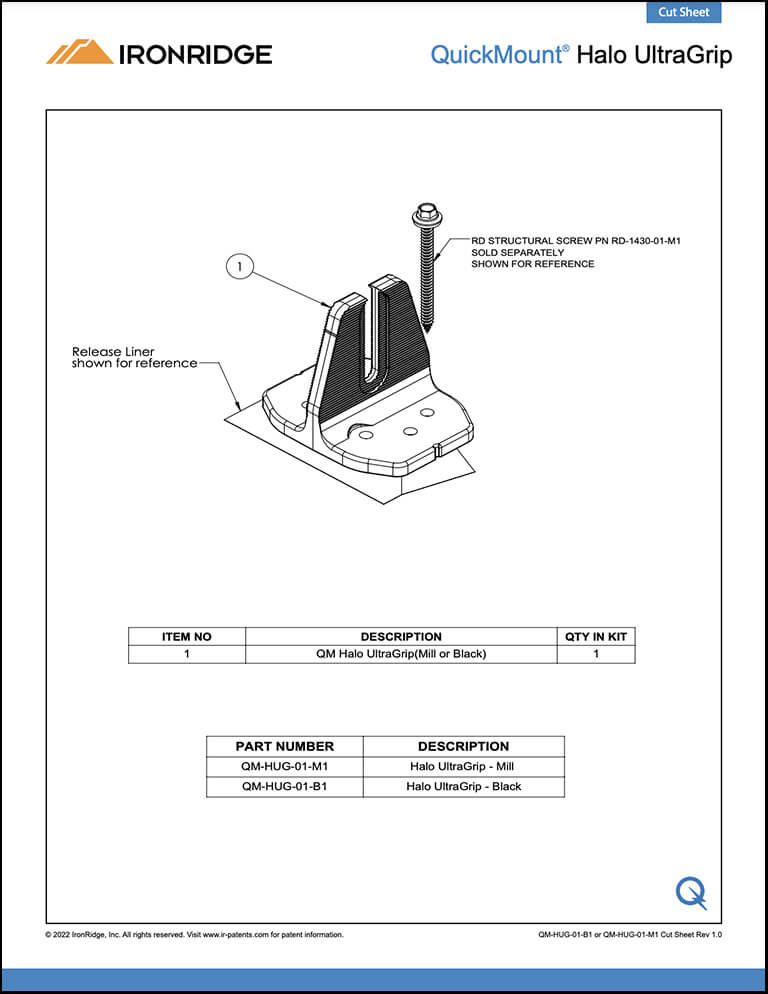

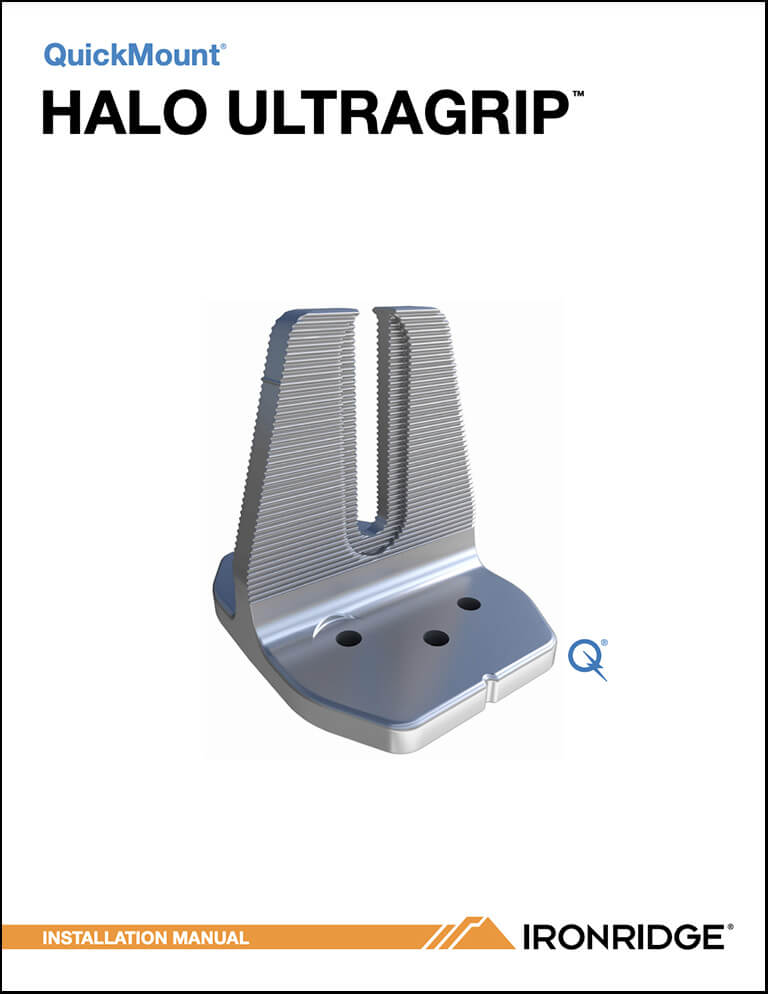

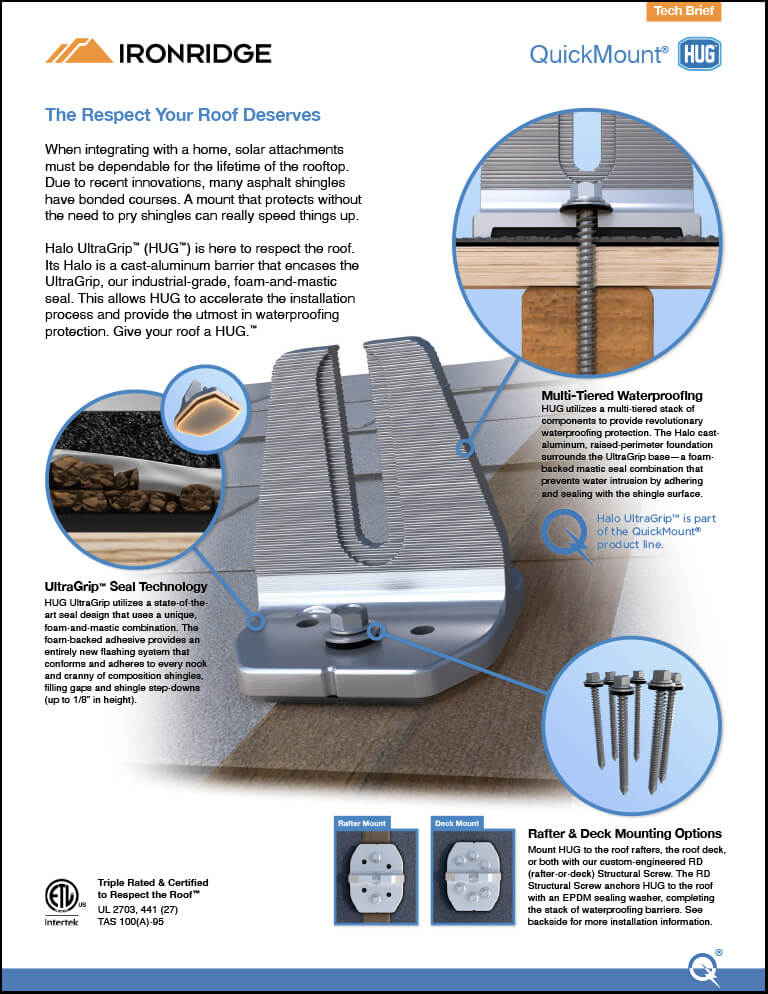

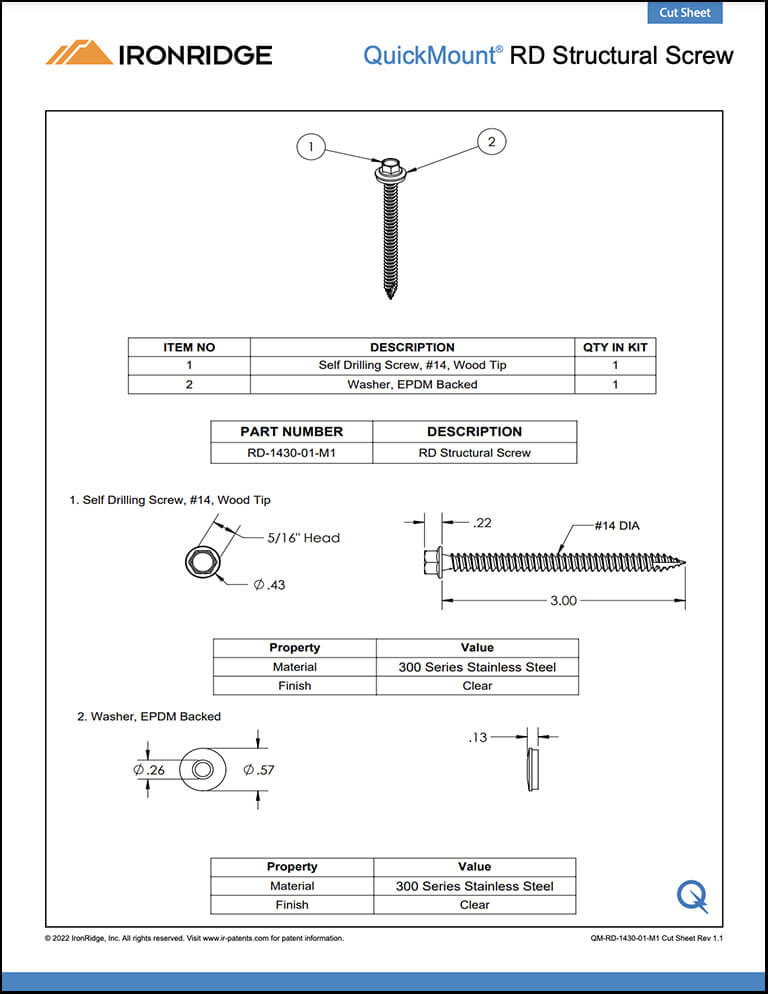

Ironridge QuickMount HUG® Mount Downloads
Complete systems available featuring IronRidge QuickMount HUG® Roof Mounts.
