Residential Solar Carports, Canopies, and Pergolas
Infinity Rack's Residential Solar Carport System is an innovative and versatile solar solution that transforms ordinary parking spaces into powerful energy-generating structures. These custom-engineered systems combine robust steel construction with high-efficiency solar panels to deliver optimal power generation while providing valuable shade and weather protection. They offer exceptional durability with wind ratings up to 120 mph, integrated LED lighting options, and are available in multiple configurations supporting 20-50 panels per structure. The systems are backed by professional engineering stamps, qualify for the 30% Federal Solar Tax Credit, and seamlessly integrate with existing home electrical systems.
Commercial Solar Carport Structures
Our Commercial Solar Carport Systems deliver industrial-scale solar power generation while providing essential shade and weather protection for large parking areas. These engineered structures support configurations from 25 to 200 solar modules, generating between 14,375 to 115,000 watts of clean energy, and can span up to 310 feet to accommodate extensive commercial parking needs. Built to rigorous commercial standards with PE-stamped engineering, integrated LED lighting, and heights of 10-14 feet for vehicle clearance, these systems qualify for the 30% Federal Solar Tax Credit with additional incentives available for US-made components starting in 2025. The modular design allows for seamless integration with EV charging stations and can be customized to meet specific site requirements and energy goals.
Enphase IQ Battery Energy Storage System
The Enphase IQ Battery Energy Storage System is a powerful, modular, and affordable energy storage solution that integrates seamlessly with Enphase microinverters and other solar technologies. It offers high performance with 96% round-trip efficiency, two cycles per day, and 100% usable capacity, while ensuring safety and reliability through its lithium iron phosphate chemistry and UL 9540 certification.
Learn More About the Enphase IQ Battery Energy Storage System

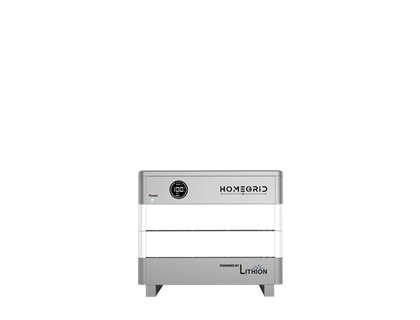

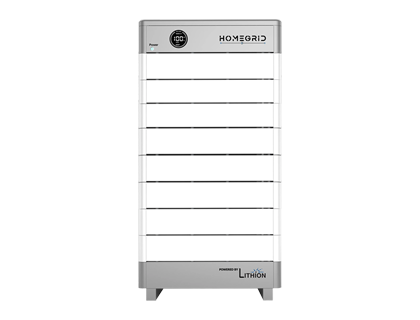

Homegrid Stack'd Series LFP Batteries
The HomeGrid Stack'd Series is a powerful, modular, and scalable advanced LFP battery storage solution designed for residential and small commercial projects. With an impressive output of up to 14.4 kW continuous power and a 24 kW surge capacity, the Stack'd Series can handle the energy needs of an entire home or business, including power-hungry appliances. The modular design allows for easy installation and expandability, with a capacity range from 9.6 kWh to 38.4 kWh per Stack and the ability to connect up to 15 units in parallel for a total capacity of 576 kWh.
Discover AES RACKMOUNT Energy Storage System
The Discover AES Rackmount Energy Storage System is a high-performance LiFePO4 battery solution that offers reliable energy storage, simple configuration, and quick installation for various applications such as off-grid solar, whole-home backup power, commercial applications, & microgrids. The system features two main battery modules, the AES RACKMOUNT 48-48-5120 and the AES RACKMOUNT 48-48-5120-H (heating integrated), which can be stacked up to six units using the Quick Stack Rack or installed in the Slimline Enclosure for outdoor use. The advanced Battery Management System (BMS) enables parallel configurations of up to 180 kWh in closed-loop systems or unlimited kWh in open-loop, delivering high current and peak power to low-voltage hybrid inverters.
Sol-Ark Residential Hybrid Solar Inverters
The Sol-Ark Residential Hybrid Inverter series encompasses the versatile 8K-2P, 12K-2P, and 15K-2P models, providing comprehensive power management solutions for homes of all sizes. These single-phase inverters feature true seamless UPS functionality with zero transfer time, 97% peak efficiency, and flexible battery compatibility for both lithium and lead-acid systems. Each model comes in standard and EMP-hardened versions, offering robust backup power capabilities while enabling sophisticated energy arbitrage and time-of-use optimization for NEM 3.0 compliance. With parallel stacking options and integrated smart load management, these inverters provide homeowners with a future-proof solution for their energy independence needs. View All Sol-Ark Residential Inverter Models
Residential
Sol-Ark 8K-2P-N
The 8K-2P-N model supports 11 kW of solar input power and delivers 8 kW of continuous AC power off-grid. It is equipped with remote WiFi/Ethernet monitoring and a built-in solar array disconnect for easy installation.
| Sol-Ark 8K-2P-N | Value |
|---|---|
| Max Allowed PV Power (STC) | 11,000W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 2 |
| Dimensions (H x W x D) | 750 x 450 x 254 mm (29.5 x 17.7 x 10 in) |
| Weight | 35.4 kg / 78 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | No |
Residential
Sol-Ark 8K-2P-EMP
The 8K-2P-EMP model supports 11 kW of solar input power and delivers 8 kW of continuous AC power off-grid. It is equipped with remote WiFi/Ethernet monitoring and a built-in solar array disconnect for easy installation. *Includes EMP Hardening.
| Sol-Ark 8K-2P-EMP | Value |
|---|---|
| Max Allowed PV Power (STC) | 11,000W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 2 |
| Dimensions (H x W x D) | 750 x 450 x 254 mm (29.5 x 17.7 x 10 in) |
| Weight | 35.4 kg / 78 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | No |
Residential
Sol-Ark 12K-2P-N
The 12K-2P-N model supports 13 kW of solar input power and delivers 9 kW of continuous AC power off-grid. It features remote WiFi/Ethernet monitoring, a built-in solar array disconnect, and is outdoor rated to NEMA 3R standards.
| Sol-Ark 12K-2P-N | Value |
|---|---|
| Max Allowed PV Power (STC) | 13,000W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 2 |
| Dimensions (H x W x D) | 750 x 450 x 254 mm (29.5 x 17.7 x 10 in) |
| Weight | 35.4 kg / 78 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | Up to 9 in parallel |
Residential
Sol-Ark 12K-2P-EMP
The 12K-2P-EMP model supports 13 kW of solar input power and delivers 9 kW of continuous AC power off-grid. It features remote WiFi/Ethernet monitoring, a built-in solar array disconnect, and is outdoor rated to NEMA 3R standards. *Includes EMP Hardening.
| Sol-Ark 12K-2P-EMP | Value |
|---|---|
| Max Allowed PV Power (STC) | 13,000W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 2 |
| Dimensions (H x W x D) | 750 x 450 x 254 mm (29.5 x 17.7 x 10 in) |
| Weight | 35.4 kg / 78 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | Up to 9 in parallel |
Residential
Sol-Ark 15K-2P-N
The 15K-2P-N model supports 19.5 kW of solar input power and delivers 15 kW of continuous AC power off-grid with PV, or 12 kW with batteries only. Remote WiFi/Ethernet and local monitoring included. EMP Hardened version available.
| Sol-Ark 15K-2P-N | Value |
|---|---|
| Max Allowed PV Power (STC) | 19,500W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 3 |
| Dimensions (H x W x D) | 807 x 494 x 306 mm (31.8 x 19.4 x 12 in) |
| Weight | 61.2 Kg / 135 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | Up to 12 in parallel |
Residential
Sol-Ark 15K-2P-EMP
The 15K-2P-EMP model supports 19.5 kW of solar input power and delivers 15 kW of continuous AC power off-grid with PV, or 12 kW with batteries only. Remote WiFi/Ethernet and local monitoring included. EMP Hardened version available. *Includes EMP Hardening.
| Sol-Ark 15K-2P-EMP | Value |
|---|---|
| Max Allowed PV Power (STC) | 19,500W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Max Input Voltage | 500V |
| MPPT Voltage Range | 150 - 500V |
| Number of MPPT | 3 |
| Dimensions (H x W x D) | 807 x 494 x 306 mm (31.8 x 19.4 x 12 in) |
| Weight | 61.2 Kg / 135 lb. |
| Enclosure | IP65 / NEMA 3R |
| Stackable | Up to 12 in parallel |
Sol-Ark L3 Series Lithium Battery Energy Storage Systems
Featuring advanced Lithium Iron Phosphate (LiFePO4) chemistry, the L3 Series offers exceptional flexibility with both outdoor (IP55) and indoor (IP20) models, catering to diverse installation requirements. These high-capacity systems range from 30kWh to 60kWh per unit and are scalable up to an impressive 2.2MWh for outdoor and 9.6MWh for indoor configurations, meeting the demands of various commercial applications. Compatible with Sol-Ark's powerful 30K and 60K inverters, the L3 Series supports both 208V and 480V systems, integrating seamlessly with PV arrays up to 1.2MWac. With features like advanced peak shaving, programmable BMS, and remote monitoring capabilities, these systems offer unparalleled efficiency and performance. The modular design allows for easy installation and future expansion, making the L3 Series ideal for applications such as demand charge reduction, grid support, and backup power in commercial buildings, industrial facilities, and large-scale solar integrations.
Learn More About Sol-Ark L3 Series Lithium Battery Energy Storage Systems

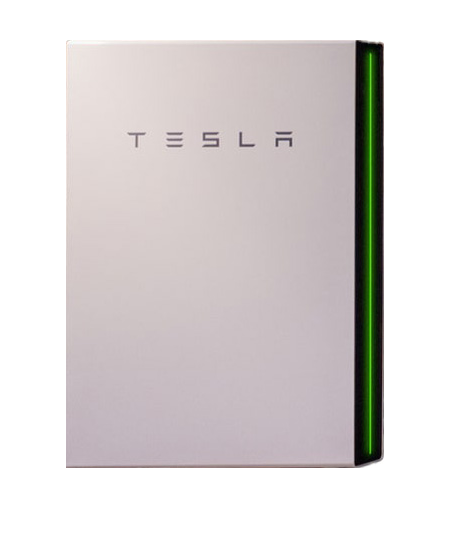

Tesla Powerwall 3

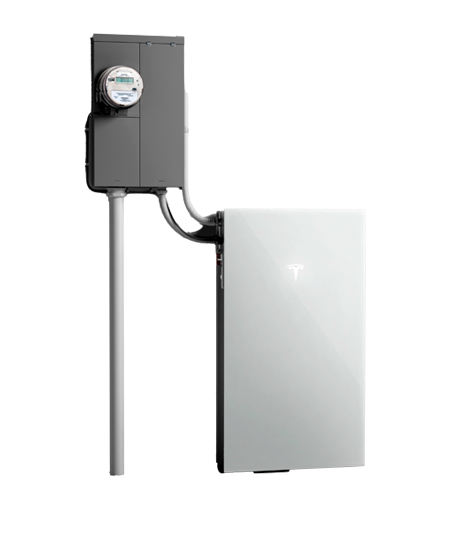

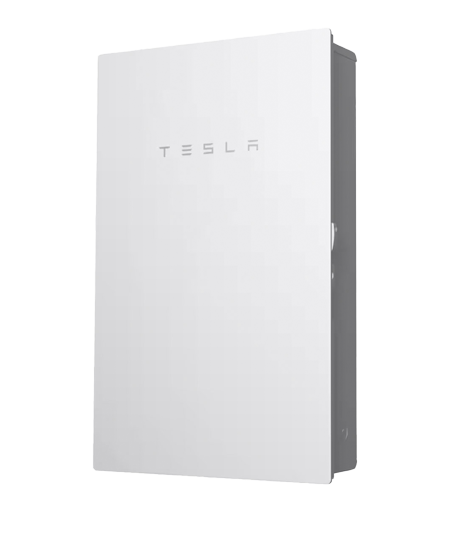

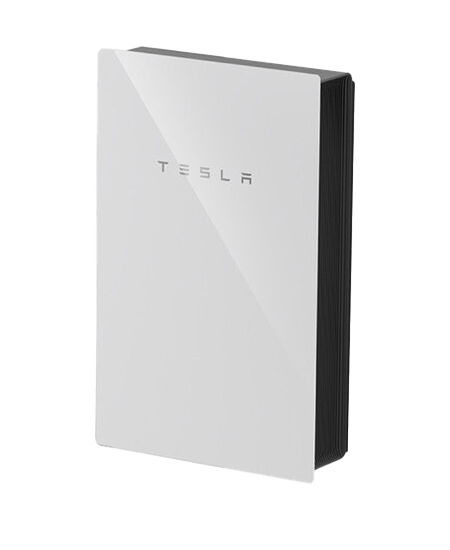

The Tesla Powerwall 3 ecosystem integrates battery storage and solar inverter functionality in a sophisticated residential energy solution. The system combines a 13.5 kWh Lithium Iron Phosphate battery with an integrated 20kW solar inverter, delivering up to 11.5kW of continuous power output and supporting loads up to 185 LRA. Multiple configuration options include the Gateway 3, Backup Gateway 2, or Backup Switch for grid monitoring and control, while the Mid-Circuit Interrupter devices ensure NEC-compliant rapid shutdown capability. Scalable up to four Powerwall units per installation, the system supports comprehensive energy management features including time-based control, self-consumption optimization, and storm watch protection. With NEMA 3R and IP67 ratings ensuring reliable operation from -20°C to 50°C, coupled with revenue-grade metering accuracy and remote monitoring through the Tesla app, the Powerwall 3 ecosystem serves applications ranging from whole-home backup to solar self-consumption and grid service participation in residential installations.
Wholesale Residential & Commercial Solar Solutions
Contact Us Today! Different carports, solar panels, PV mount & inverter systems available at low wholesale prices.
Lithium Battery Energy Storage Solutions
We offer a comprehensive wholesale selection of advanced lithium battery storage solutions from leading manufacturers
Learn MoreResidential Carport Systems Catalog
Residential carport and pergola systems with complete with design services and components from leading manufacturers
Learn MoreCommercial Carport Systems Catalog
From EV charging stations to expansive parking structures, Solar Electric Supply has you covered
